Description

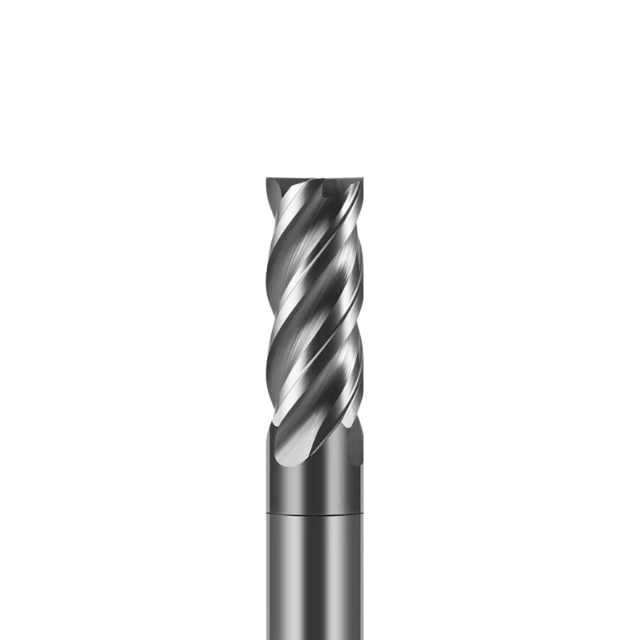

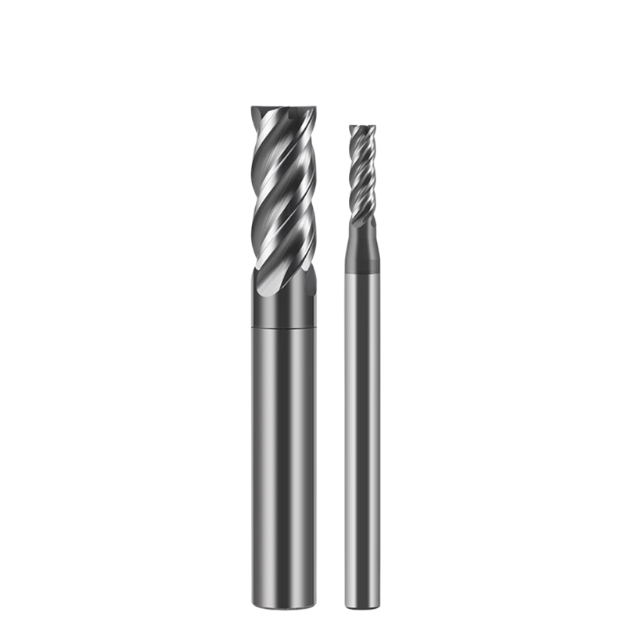

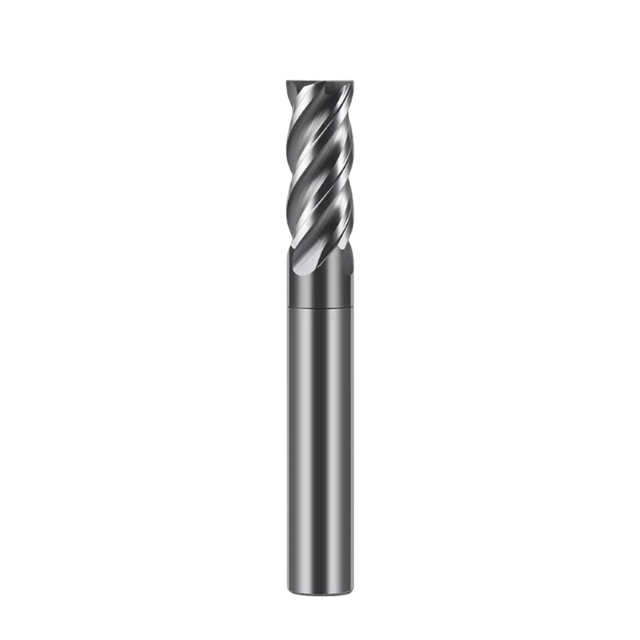

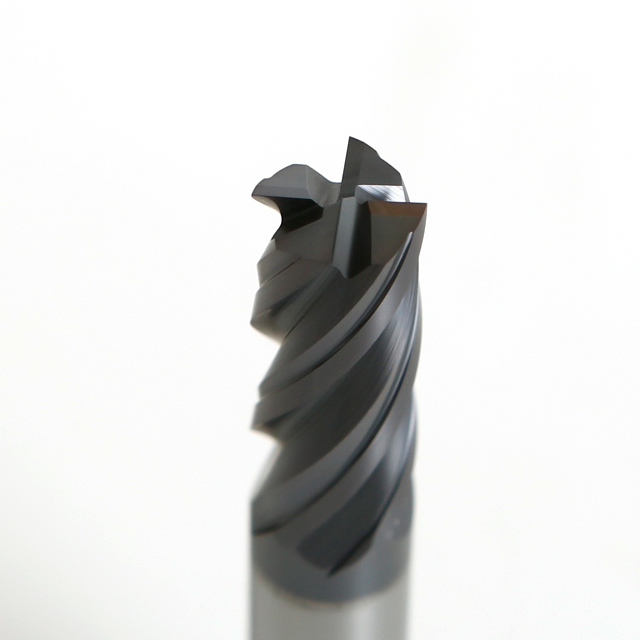

High Performance Micrograin Carbide 4 Flute Extra Long End Mills, designed to excel in precision machining tasks. Crafted from high-quality micrograin carbide, these end mills are engineered for durability and superior performance in a variety of materials.
| Cut Dia.(mm) | Length of Cut (mm) | Shank Dia.(mm) | Overall Length(mm) | Flutes |
| 3.0 | 12 | 3 | 75 | 4 |
| 4.0 | 16 | 4 | 75 | 4 |
| 4.0 | 20 | 4 | 100 | 4 |
| 5.0 | 20 | 5 | 75 | 4 |
| 5.0 | 25 | 5 | 100 | 4 |
| 6.0 | 25 | 6 | 75 | 4 |
| 6.0 | 30 | 6 | 100 | 4 |
| 6.0 | 40 | 6 | 150 | 4 |
| 8.0 | 28 | 8 | 75 | 4 |
| 8.0 | 35 | 8 | 100 | 4 |
| 8.0 | 50 | 8 | 150 | 4 |
| 10.0 | 40 | 10 | 100 | 4 |
| 10.0 | 50 | 10 | 150 | 4 |
| 12.0 | 45 | 12 | 100 | 4 |
| 12.0 | 60 | 12 | 150 | 4 |
| 14.0 | 60 | 14 | 150 | 4 |
| 16.0 | 60 | 16 | 150 | 4 |
| 18.0 | 70 | 18 | 150 | 4 |
| 20.0 | 70 | 20 | 150 | 4 |
