Description

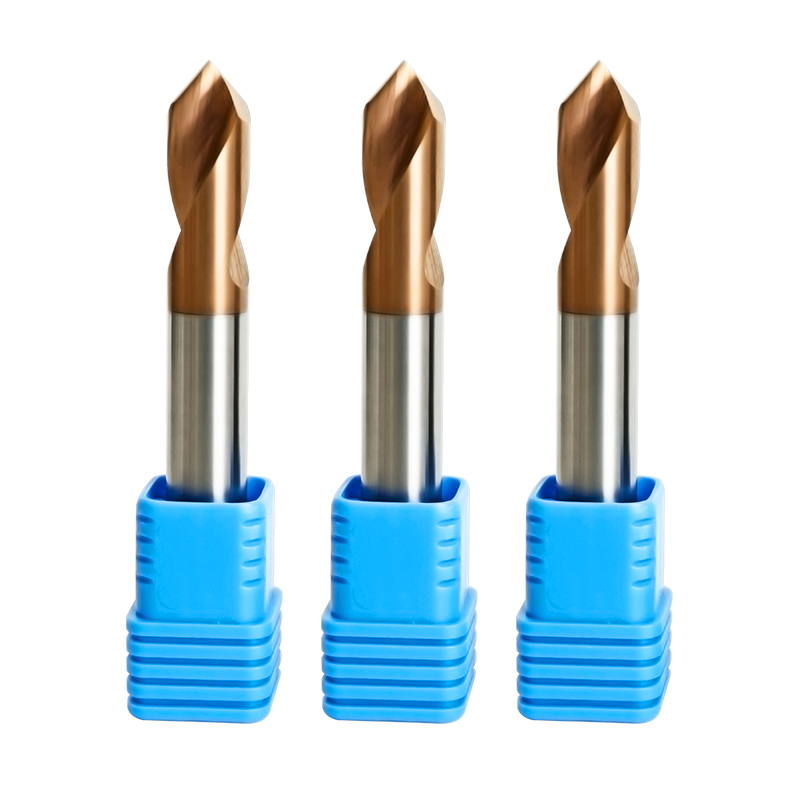

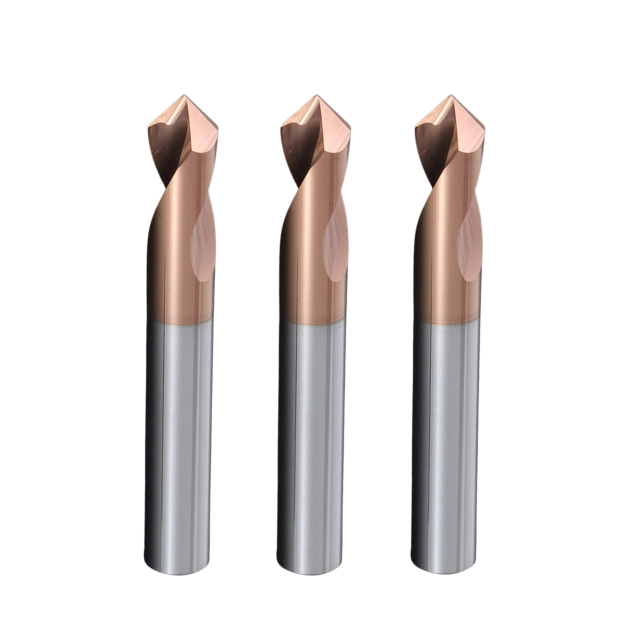

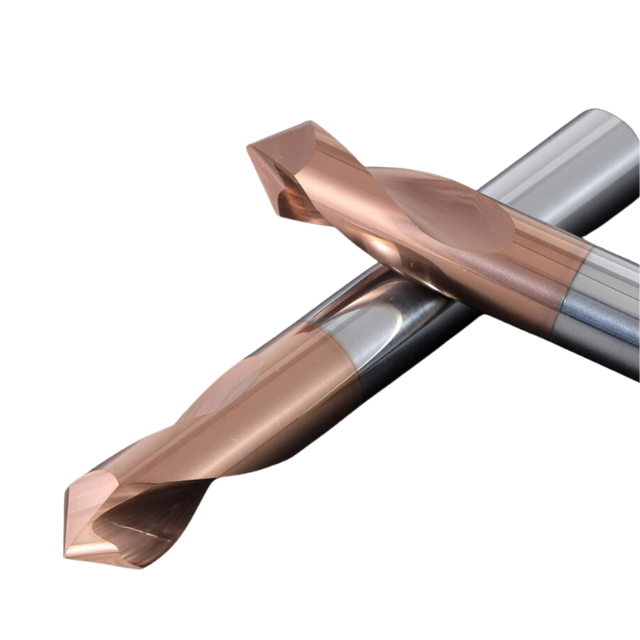

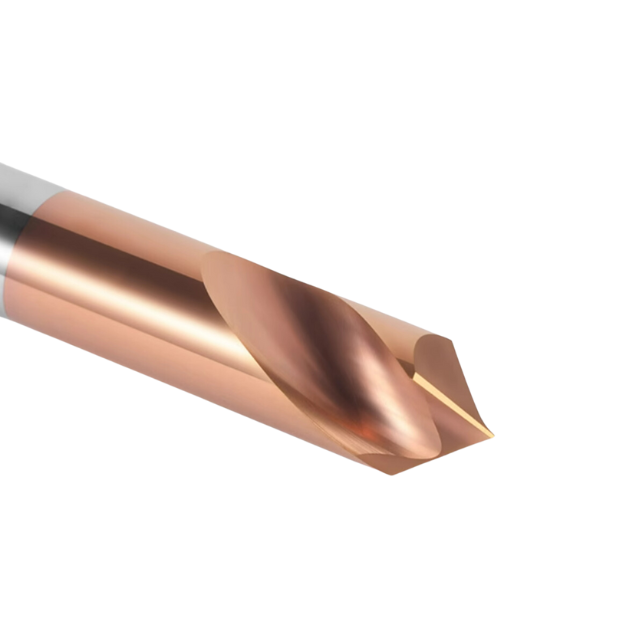

Introducing our general performance 60, 90 & 120 Degree TiSiN coated 2 flute carbide NC spotting drills, designed for exceptional precision and durability. Engineered to excel in spot drilling applications, they are perfect for working with a variety of materials, including carbon steel, alloy steel, cast iron, stainless steel, and high-hardness steel. Available in 60, 90, and 120-degree angles, these versatile tools ensure accurate, clean drilling every time. Enhance your machining efficiency and achieve superior results with our premium carbide spotting drills.
| Cut Dia.(mm) | Length of Cut (mm) | Shank Dia.(mm) | Overall Length(mm) | Angle |
| 2.0 | 4 | 2 | 50 | 60°/90°/120° |
| 3.0 | 6 | 3 | 50 | 60°/90°/120° |
| 4.0 | 8 | 4 | 50 | 60°/90°/120° |
| 4.0 | 8 | 4 | 100 | 60°/90°/120° |
| 5.0 | 10 | 5 | 50 | 60°/90°/120° |
| 5.0 | 10 | 5 | 100 | 60°/90°/120° |
| 6.0 | 12 | 6 | 50 | 60°/90°/120° |
| 6.0 | 12 | 6 | 100 | 60°/90°/120° |
| 8.0 | 16 | 8 | 60 | 60°/90°/120° |
| 8.0 | 16 | 8 | 100 | 60°/90°/120° |
| 10.0 | 20 | 10 | 75 | 60°/90°/120° |
| 10.0 | 20 | 10 | 100 | 60°/90°/120° |
| 12.0 | 20 | 12 | 75 | 60°/90°/120° |
| 12.0 | 20 | 12 | 100 | 60°/90°/120° |
| 16.0 | 25 | 16 | 100 | 60°/90°/120° |
| 20.0 | 25 | 20 | 100 | 60°/90°/120° |
