Straight Flute Carbide Drill Bits
General Performance 2 Flute Uncoated Straight Flute Carbide Drill Bits for Metal - Image 2
General Performance 2 Flute Uncoated Straight Flute Carbide Drill Bits for Metal - Image 3
General Performance 2 Flute Uncoated Straight Flute Carbide Drill Bits for Metal - Image 4

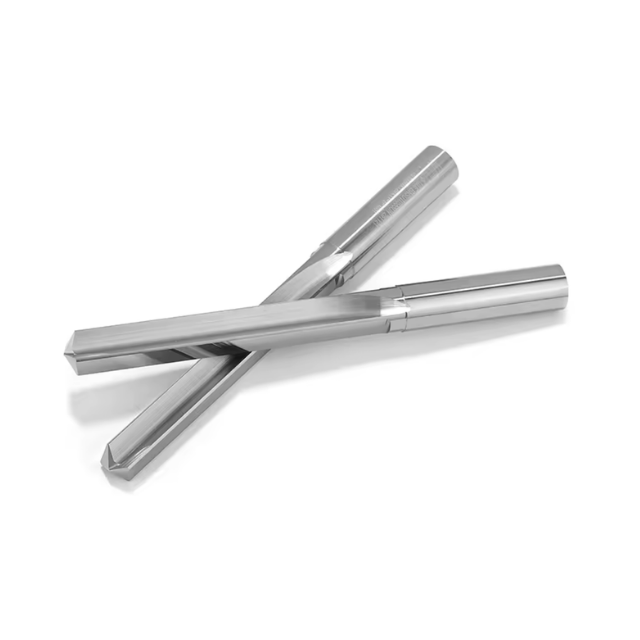

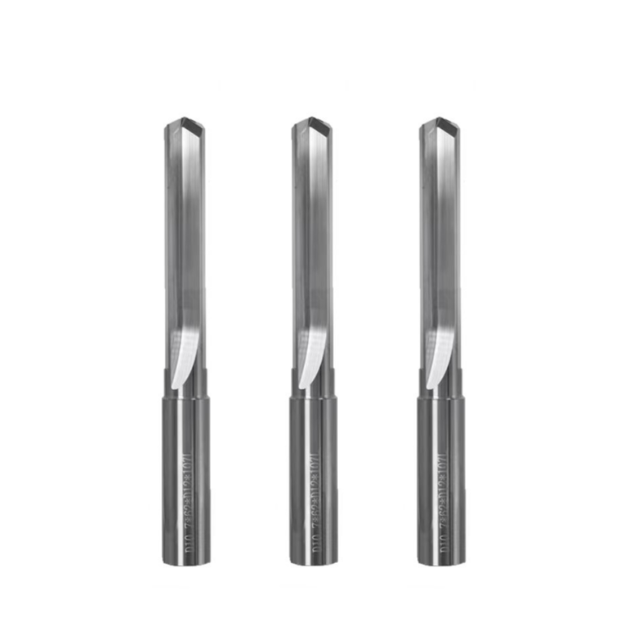

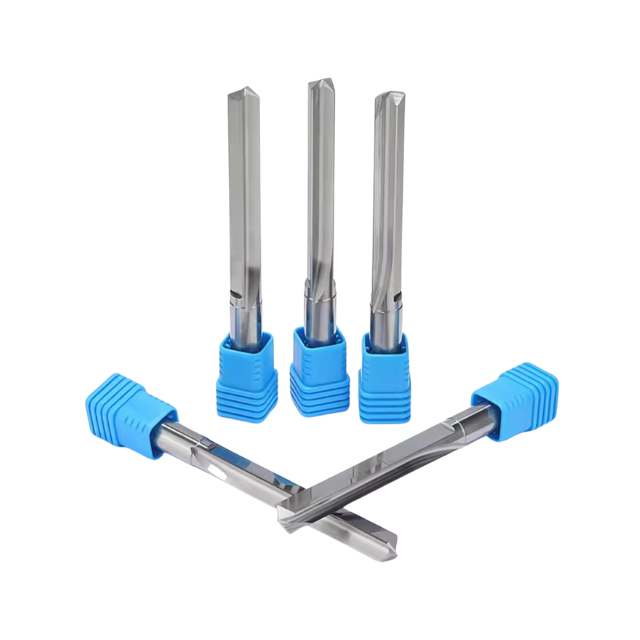

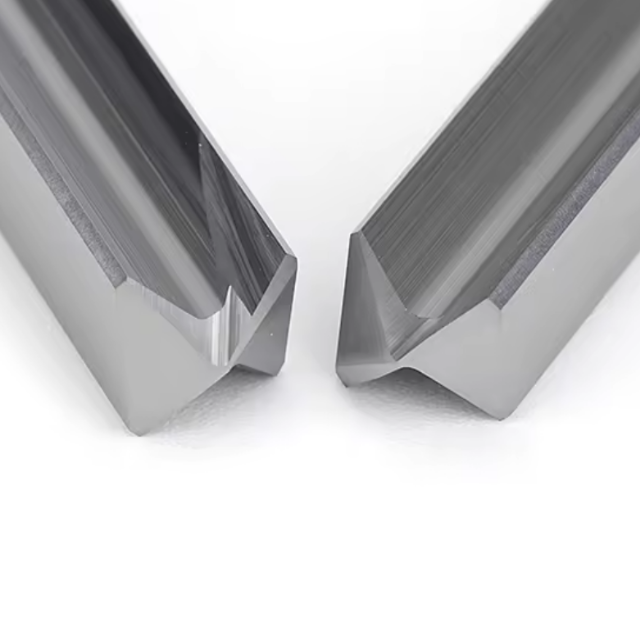

General Performance 2 Flute Uncoated Straight Flute Carbide Drill Bits for Metal

  • Effective for drilling through various metals such as cast iron, aluminum, and copper alloys.
  • Capable of achieving higher feed rates compared to spiral flute drill bits.
  • Made from premium micro grain carbide, these carbide drill bits for metal offer exceptional hardness and wear resistance, ensuring a long tool life and reducing the need for frequent replacements.
  • The straight flute configuration facilitates effective chip evacuation, minimizing clogging and reducing heat buildup, which enhances overall drilling efficiency.
What We Offer
Experience precision with Guess Tools’ Custom Tooling Service. We create tailor-made carbide cutting tools meticulously designed to meet your specific machining needs.

Explore our quality firsthand—request a sample from Guess Tools and witness the superior performance of our carbide cutting tools.

Get Customize Quote

Description

These straight flute carbide drill bits for metal are crafted from micro grain carbide, ensuring exceptional hardness and longevity, making them ideal for a wide range of metalworking tasks. The straight flute design provides excellent chip removal, reducing friction and heat buildup. Enhance your drilling efficiency and achieve superior outcomes with the straight flute carbide drill bits for metal.

Cut Dia.(mm) Length of Cut (mm) Length of Groove (mm) Shank Dia. (mm) Overall Length (mm) Flutes
3.0 14 20 6 62 2
4.0 17 20 6 66 2
5.0 20 28 6 66 2
6.0 20 28 6 66 2
7.0 24 34 8 79 2
8.0 29 41 8 79 2
9.0 35 47 10 89 2
10.0 35 47 12 89 2
11.0 40 55 12 102 2
12.0 40 55 12 102 2
13.0 43 60 14 107 2
14.0 43 60 14 107 2
15.0 45 65 16 115 2
16.0 45 65 16 115 2
17.0 51 73 18 123 2
18.0 51 73 20 123 2
19.0 55 79 20 131 2
20.0 55 79 20 131 2
